DESCRIPTION
Dorian Tool Part Number: 733101-45026

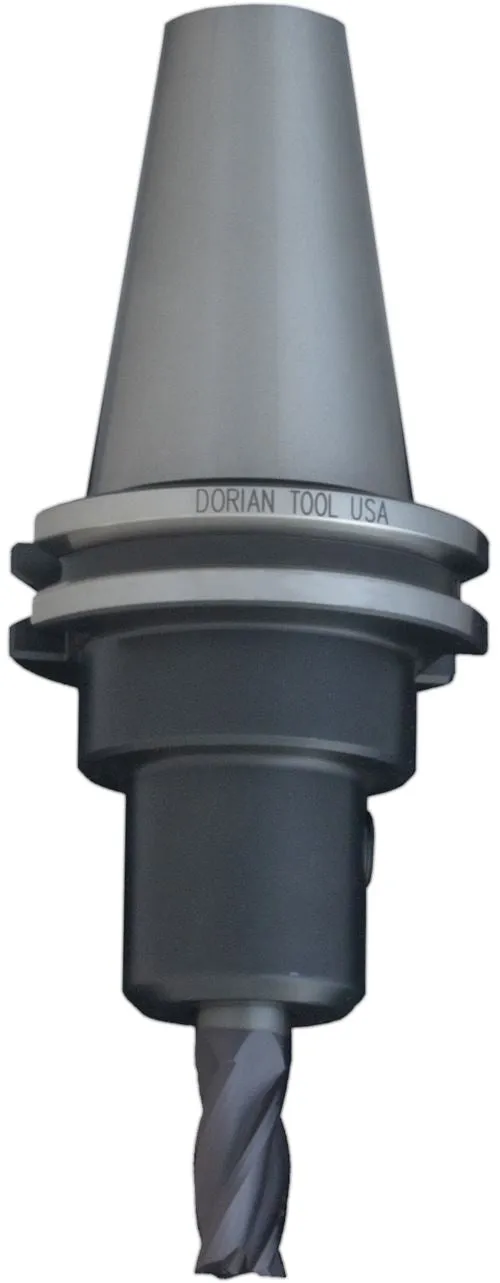

Dorian Tool End Mill Holders are precision made in Italy. Balanced to 12,000 RPM these End Mill Holders/ Adapters are very versatile and should be used for rigid machining operations in machines with CAT40 taper spindles. The tapers are ground to AT-3 specifications or better for the right contact with the spindle. The H5 Bore tolerance creates a air-tight fit for maximum contact with the end mill.
- .0001" Taper-Bore Runout Tolerance
- Made of 8620 Alloy Steel with Case Hardness of 56-60 HRC and Core Hardness of 36-40 HRC
- Thru Coolant Feature
- Made in Italy
***Product image may be different than actual product.
SPECIFICATIONS
| Brand: | DORIAN |
| Type: | End Mill Holders |
| Model: | CAT40 EMH-0625-1750 |
| Taper: | CAT40 |
| Size: | 5/8 |
| Projection (in): | 1.75 |
| Thru Coolant: | Standard Coolant Thru The Body |
| Head Diameter (in): | 1.75 |
| Balanced To: | 12000 RPM |
| Prop 65: | Yes |
| Country Of Origin: | ITALY |
